High Reflectance Metal

Fusion Optix reflective metals offer some of the highest diffuser and specular white reflectance levels. Designed to reflect efficiently and uniformly across the visible spectrum, our reflective materials boast greater than 97% overall reflectance. Our reflective materials promote highly efficient light control and extraction, resulting in greatly improved fixture performance. Long lasting and durable, our reflective film can be converted and supplied in a variety of form factors.

Categories: , SKU: 930

Description

ReflecTEK™ Metal Reflectors

Fusion Optix reflective films and components offer some of the highest diffuser and specular white reflectance levels. Designed to reflect efficiently and uniformly across the visible spectrum, our reflective materials boast greater than 97% overall reflectance. Our reflective materials promote highly efficient light control and extraction, resulting in greatly improved fixture performance. Long lasting and durable, our reflective film can be converted and supplied in a variety of form factors.

Benefits

  • High reflectance (97%)
  • Improved display uniformity due to diffuse reflectance
  • Improved system efficiency
  • Uniform reflectance across visible spectrum
  • Long lasting and durable
  • Custom sizes and form factors
  • UV Stability
  • Easy to clean
  • No Color Shift
  • Formable

Applications

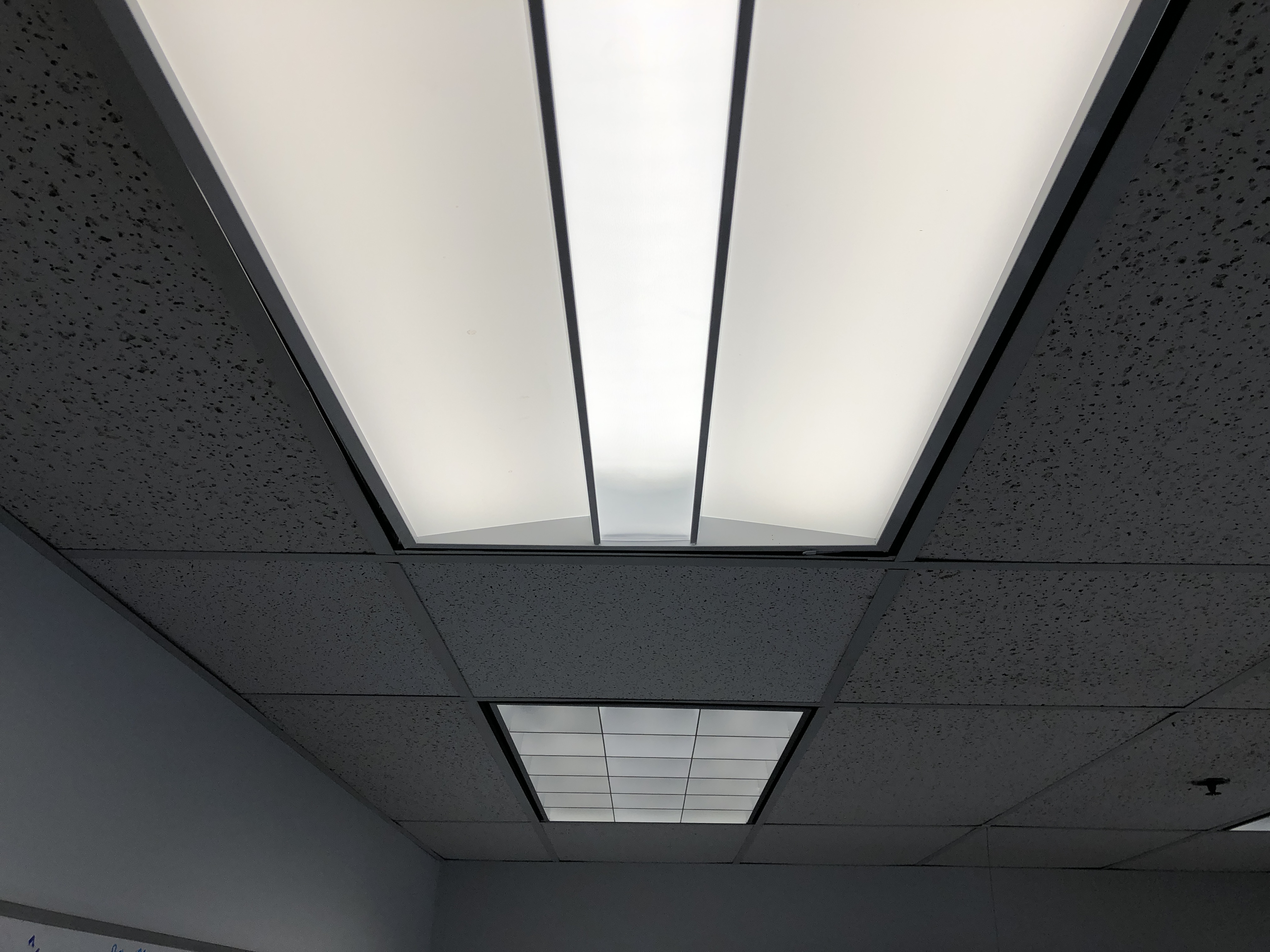

  • Troffer Fixtures
  • Recessed Downlights
  • Backlighting
  • Wall Washing
  • Sconces
  • Edgelit Fixtures
  • Architectural/Technical Lighting
  • Decorative Lighting

Download the datasheet for this product.

Download Datasheet

Diffusion Films & Sheets

Angles T% Haze Clarity Thickness Material ColorSure™
5° x 5° 92% 70 25 PMMA: 200-1500PCUV:100-2000



PMMA/PCCS ColorSure technology is available on all Diffusion Materials
10° x 10° 94% 75 15 PMMA/PCCS
15° x 15° 94% 85 8 PMMA/PCCS
20° x 20° 93% 95 4 PMMA/PCCS
25° x 25° 93% 95 4 PMMA/PCCS
30° x 30° 94% 99 3.8 PMMA/PCCS
35° x 35° 93% 99 3 PMMA/PCCS
40° x 40° 92% 99 3 PMMA/PCCS
50° x 50° 91% 100 2.8 PMMA/PCCS
60° x 60° 89% 100 2.7 PMMA/PCCS
70° x 70° 85% 100 2.5 PMMA/PCCS
80° x 80° 80% 100 2.2 PMMA/PCCS
90° x 90° 78% 100 2 PMMA/PCCS
100° x 100° 75% 100 2 PMMA/PCCS
110° x 110° 75% 100 2 PMMA/PCCS
25° x 15° 92% 70 25 PCCS
40° x 1° 94% 85 8 PCCS
50° x 1° 93% 95 4 PCCS
60° x 1° 94% 75 15 PCCS
60° x 40° 93% 99 3 PCCS
70° x 10° 92% 99 3 PCCS
70° x 20° 91% 100 2.8 PCCS
80° x 30° 89% 100 2.7 PCCS

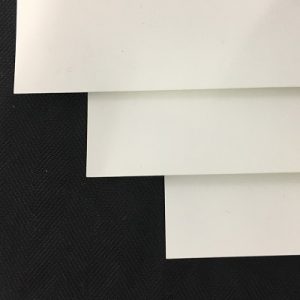

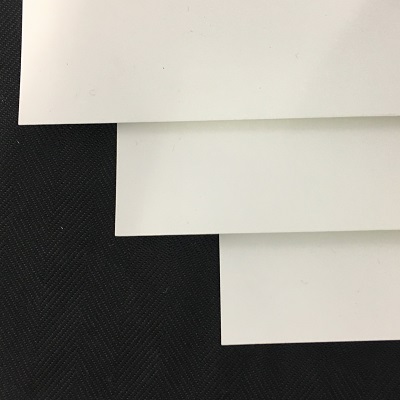

Reflective Films & Sheets

Thickness (μm) Reflectivity at 550nm Gloss @ 60° Gloss @ 45°
150 97% 45GU 40GU



Embossed Films & Sheets

Type Size Material Max. Width Thickness Max. Operating Temp
Microlens 32μm PET 940mm 275μm 85°C
Prism 48μm PET 685mm 250μm 85°C
Lenticular 178μm PETG/APET 1219mm 580μm 85°C



Conversion Options

Thermoforming Laser Cut Routing Die Cutting Lamination
PMMA X X X (sheets only) X
PCCS X X
PET X X
