Tunable & RGBW Linears

Features & Benefits

SpekLED® LS9 Series

SpekLED® family of linear LED boards are available in either constant voltage or constant current modes and provide a low-cost and high-performance solution a wide range of LED lighting products, including recessed/slot linear, troffer, pendant, and suspended LED luminaires

Standard or custom lengths and multiple color temperature options (2700K, 3000K, 3500K, 4000K, RGB, RGB+W and Tunable White) allow SpekLED® LED engines to be applicable to nearly every project. CRI values of 90+ are also available and all products have a 50,000 hour life expectancy and a 5-year warranty.

Downloads

Categories: , SKU: 1896-2-1

Additional Information

SpekLED™ LS9 Series

Up to 200lm/W efficacy and color performance in a range of lengths up to 4ft (1200mm) with choice of drive circuits and connectors.

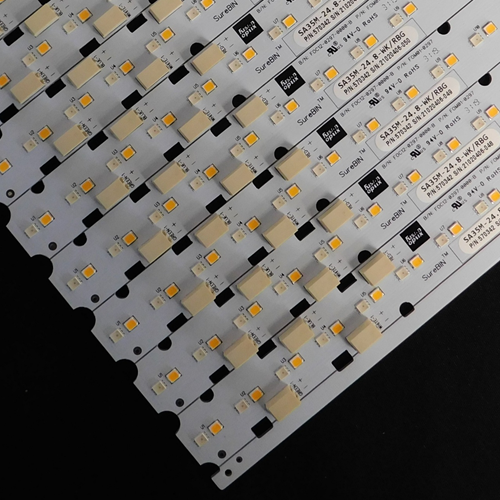

SpekLED™ CentreLine Linear LED Boards

KEY: Type= Center, CC = constant current, CV = constant voltage, Vf = forward voltage, Max Lm = maximum lumens output
OrderTypeLengthWidthLED (#)DriveVfI mALmWEfficacy
FOM01-00972FT597 mm9 mm1C/5630/8P10SCC305332,80016175 lm/W
FOM01-02232FT600 mm13 mm1C/3030/12P10SCC308004,20024175 lm/W
FOM01-01032FT582 mm13 mm1C/5630/8P10SCC305335,46016175 lm/W
FOM01-02622FT280 mm20 mm1C/5630/3P12SCC3616710806175 lm/W
FOM01-00682FT280 mm20 mm1C/5630/3P10SCC301679005175 lm/W
