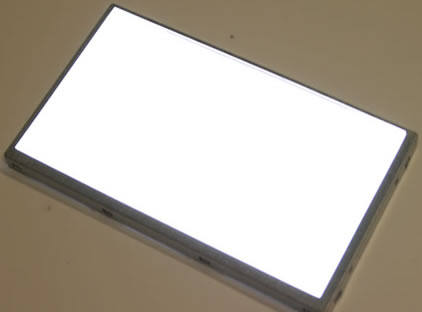

LCD Backlit Units

Description

High Performance LCD Backlighting

Fusion Optix High Performance LCD Backlight Units are designed to meet the needs of the most demanding customers.

Our Sunlight Readable BLUs, Bright Color BLUs, and Ultra Color BLUs offer customers the flexibility to achieve industry leading performance in rugged, outdoor, military, medical and other environments which require excellent performance while saving energy and space.

Fusion Optix BLUs are fully customizable and we work closely with our customers to consistently meet or exceed the application requirements.

Standard BLU Offering

Sunlight Bright BLU

Highest Brightness
Low Energy Usage

Bright Color BLU

Improved Color Rendering
High Brightness

Ultra-Color BLU

Expanded Color Gamut
Enables Extra Sharp Colors

Benefits

High Brightness
Low energy usage
Excellent color rendering
Wide color gamut
Enables extra sharp colors

Applications

Sunlight Bright Displays
Bright Color Displays
Ultra-Color Displays
Medical Display
Industrial Control Display
Rugged Vehicle Display
Aviation Display
Military Display Monitor

LCD BLU Choices

	Sunlight Bright			Bright Color			Ultra-Color
Diagonal	10.4″	12.1″	15″	10.4″	12.1″	15″	10.4″	12.1″	15″
FO Part#	4100-0014-00	4100-0015-00	4100-0016-00	4100-0014-01	4100-0015-01	4100-0016-01	4100-0014-02	4100-0015-02	4100-0016-02
LEDs	White 6500K	White 6500K	White 6500K	White and Red	White and Red	White and Red	RGB	RGB	RGB
Display Ratio	4:3	4:3	4:3	4:3	4:3	4:3	4:3	4:3	4:3
Active Area (mm)	211.2 x 158.4	246 x 184.5	304 x 228.1	211.2 x 158.4	246 x 184.5	304 x 228.1	211.2 x 158.4	246 x 184.5	304 x 228.1
Nits	15000	15000	15000	10000	10000	10000	5000	5000	5000
Hor. Viewing Angle	80	80	80	55	55	55	55	55	55
Vert. Viewing Angle	80	80	80	55	55	55	55	55	55
Uniformity	>80% @ 15 points	>80% @ 15 points	>80% @ 15 points	>80% @ 15 points	>80% @ 15 points	>80% @ 15 points	>80% @ 15 points	>80% @ 15 points	>80% @ 15 points
Mixing Distance	2.4mm	2.5mm	3mm	2.4mm	2.5mm	3mm	2.4mm	2.5mm	3mm
NTSC Color Gamut	50%	50%	50%	60%	60%	60%	110%	110%	110%
Wattage	10	12	16	8	10	12	7	8	10
