Description
Variable Linear
| Module P/N | Power (W) | Current (mA) | Flux (lm) | Efficacy (LPW) | Width (mm) | Length (mm) | # of LEDS | |
| FOM01-0310 | 18.3 | 507 | 3300 | 180 | 19 | 23.9 | 72 | |
| FOM01-0328 | 18.3 | 507 | 3300 | 180 | 19 | 23.9 | 72 | |
| FOM01-0342 | 18.3 | 507 | 3300 | 180 | 38.1 | 23.8 | 72 |

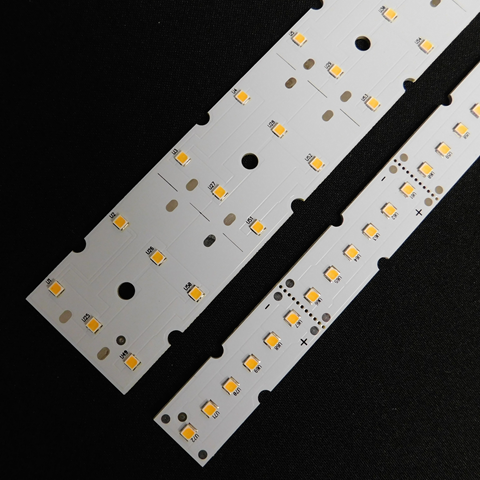

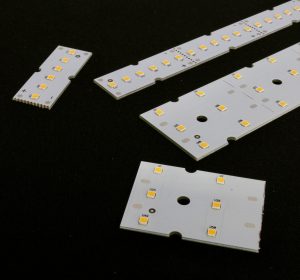

Cutable Linears
Key features
- High LED module efficacy of up to 180 lm/W
- Mid Power and High Flux options
- Color rendering (80 and 90 CRI)
- Excellent color consistency of 3 SDCM
- Choice of color temperatures (2700K, 3000K, 3500K, and 4000K)
- Module widths 19mm and 38.1mm
- Variable Length (cuttable) modules every 2”
- Long life-time: >50,000 hours
- Wide temperature (Tc) range from -40 °C up to +90 °C
- UL 8750 recognized
- Five year standard warranty
Benefits
- Excellent choice for back-lit and edge-lit lighting applications
- Consistent color quality best suited for lighting designers and specifiers
- Compatible with Fusion Optix Remote and Onboard Optics
- Made in the USA
