AirOptics™ – Square Array

Category: SKU: 531

Description

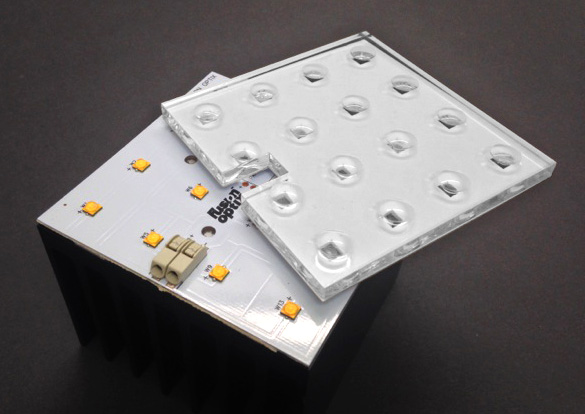

AirOptics™ - Square Array

AirOptics™ deliver similar collimation performance to conventional TIR secondary optics but with >90% efficiency, improved color uniformity, no tooling costs, and custom configurations to match specific LED arrangements. Compared to the traditional approach, the integration of multiple TIR lenses and holders into a single integrated sheet provides simpler more cost effective lighting products. Designed to be used when LEDs are arranged in line.

Benefits

  • Single planar component
  • Hybrid secondary optics that cover any number of LEDs
  • Compatible with most major LEDs (Cree, Nichia, Lumileds, Osram, Seoul)
  • No mounting brackets
  • Produced in-house using low-cost processes
  • Adjustable output angles (90°, 60°, 45°)
  • Additional beam smoothing
  • Focused on providing higher levels of efficiency (>90%) and beam control
  • Matching Fusion Optix LED modules
  • Simplifies assembly
  • Reduced cost and BOM
  • Full engineering support available

Secondary Optics Customizability and Development Kits

Due to our cost-effective and efficient manufacturing process we are capable of rapidly supplying our customers with prototypes based on their specifications.

In addition the Fusion Optix Solutions Group is capable of designing the Secondary Optics based on the light output required by the customer.

We also offer development kits that utilize Secondary Optics technology. For more information visit the Development Kits page.
