Description

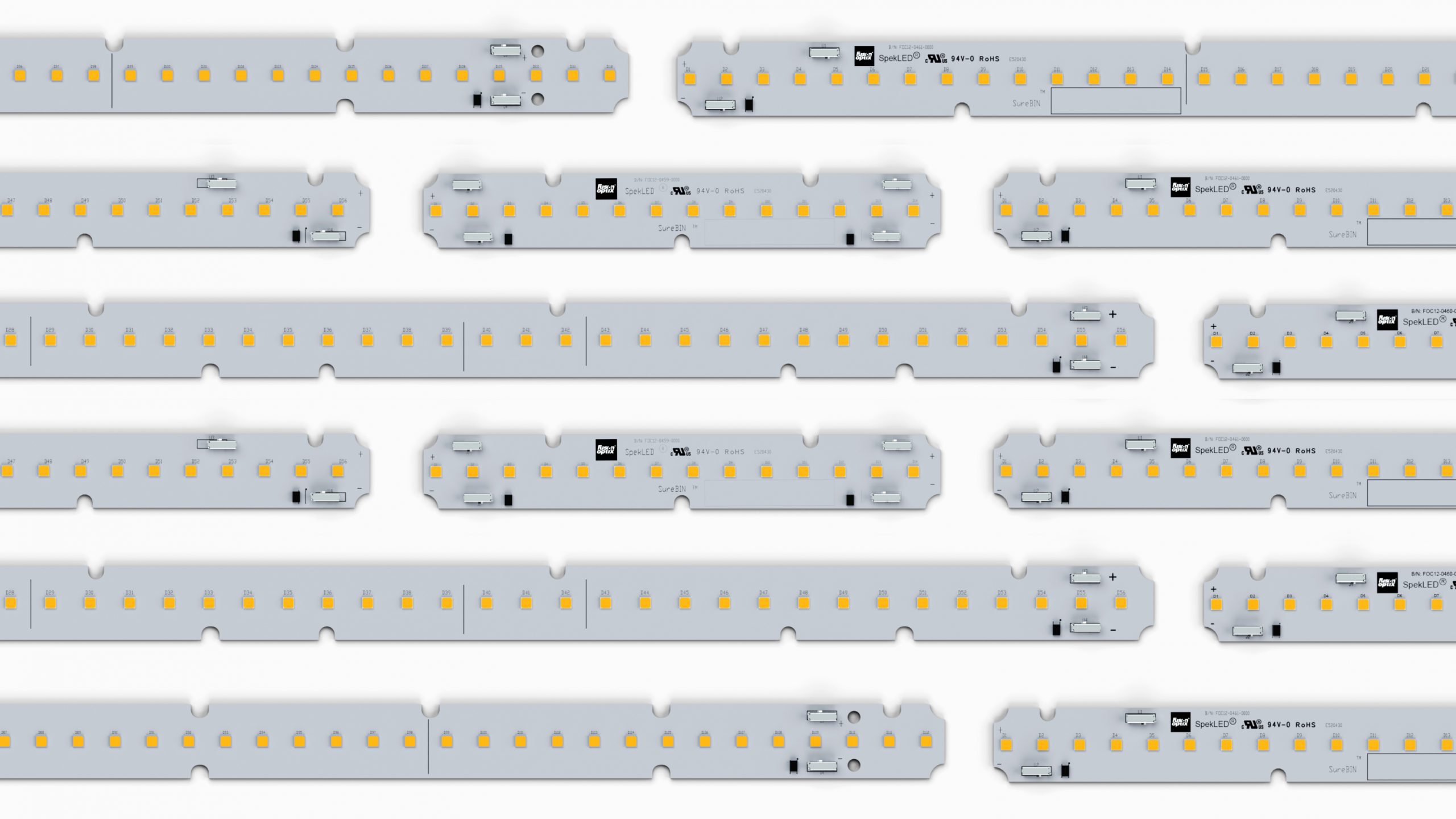

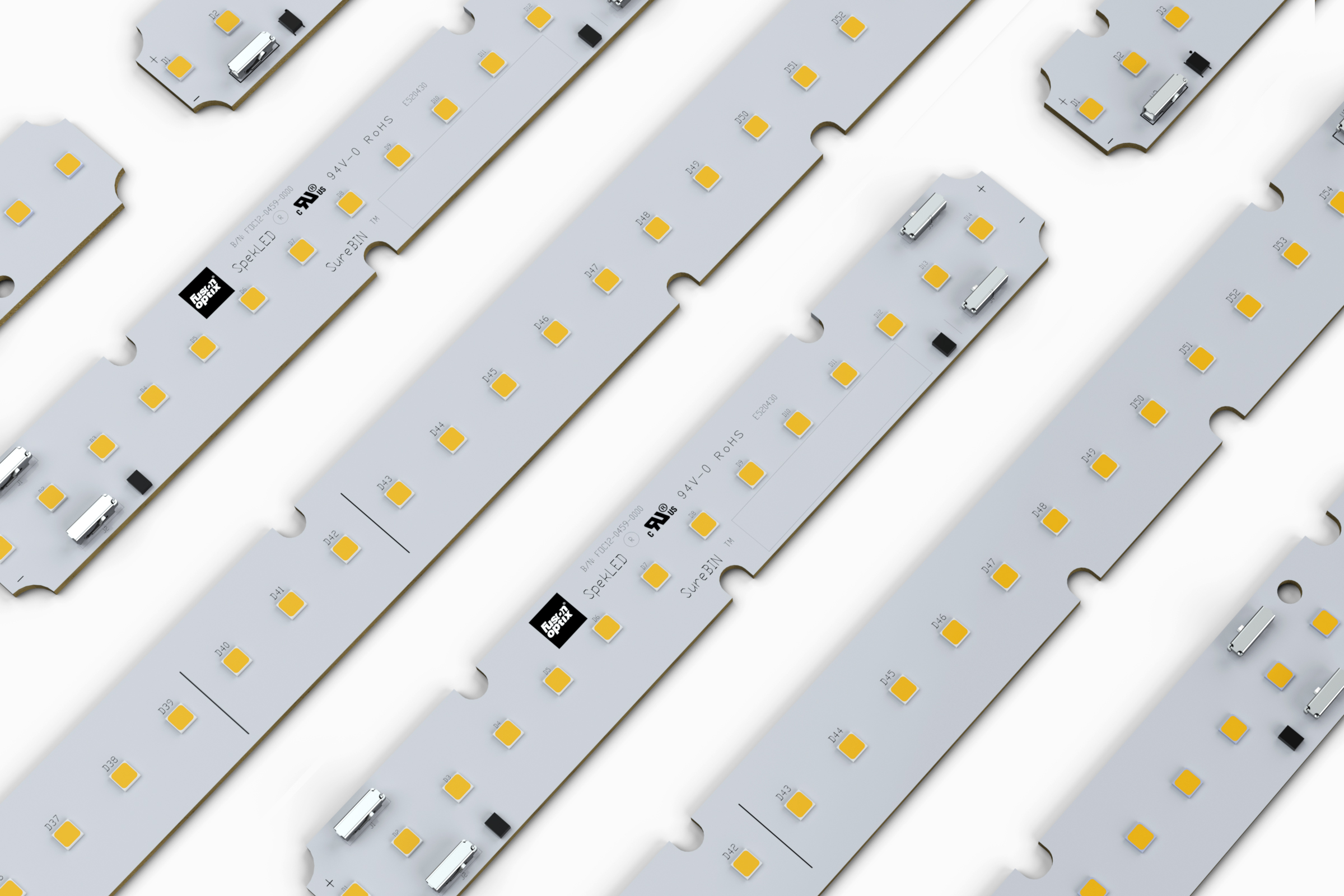

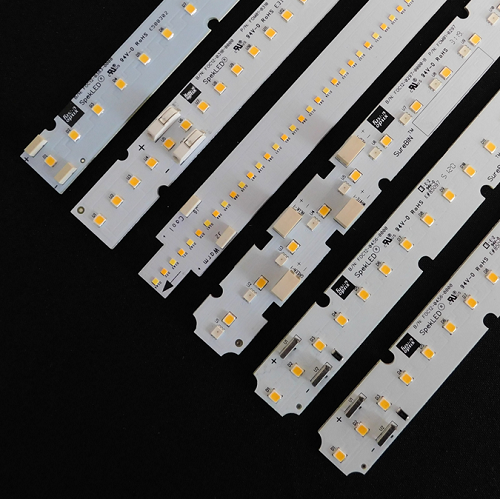

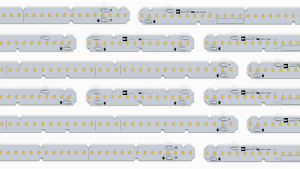

0.8" (20mm) Premium Linears
The Premium module can achieve 197 lumen per watt in efficacy for better energy saving and targeting DLC Premium in lighting fixtures. It allows a lower power consumption, the ease in thermal management, and longer LED and system lifetime. The options of 90 CRI, high R9, and 2.5 SDCM color consistency are ideal for lighting applications with higher requirements such as retail, hospitality, and healthcare.
Performance Linear
| Module P/N | Power (W) | Current (mA) | Flux (lm) | Efficacy (LPW) | Width (mm) | Length (in) | # of LEDS |
| FOM01-0459 | 2.8 | 73 | 550 | 197 | 20 | 5.5 | 14 |
| FOM01-0460 | 5.6 | 145 | 1100 | 197 | 20 | 11 | 28 |
| FOM01-0461 | 11.2 | 290 | 2200 | 197 | 20 | 22 | 56 |
| FOM01-0456 | 11.2 | 290 | 2200 | 197 | 20 | 23.7 | 56 |
| FOM01-0462 | 22.3 | 580 | 4400 | 197 | 20 | 44 | 112 |
0.8" (20mm) Economy Linears
The Economy linear LED module range provides an alternate platform that can deliver the standard lighting performance with affordable pricing. Both Premium and Economy portfolios cover a range of module lengths from 5.5 inches to 44 inches with 20mm width that can be easily paired and designed-in for recessed, linear, troffer, panel, pendant, and suspended LED luminaires.
Performance Linear
| Module P/N | Power (W) | Current (mA) | Flux (lm) | Efficacy (LPW) | Width (mm) | Length (in) | # of LEDS |
| FOM01-0459 | 2.8 | 73 | 550 | 197 | 20 | 5.5 | 14 |
| FOM01-0460 | 5.6 | 145 | 1100 | 197 | 20 | 11 | 28 |
| FOM01-0461 | 11.2 | 290 | 2200 | 197 | 20 | 22 | 56 |
| FOM01-0456 | 11.2 | 290 | 2200 | 197 | 20 | 23.7 | 56 |
| FOM01-0462 | 22.3 | 580 | 4400 | 197 | 20 | 44 | 112 |
