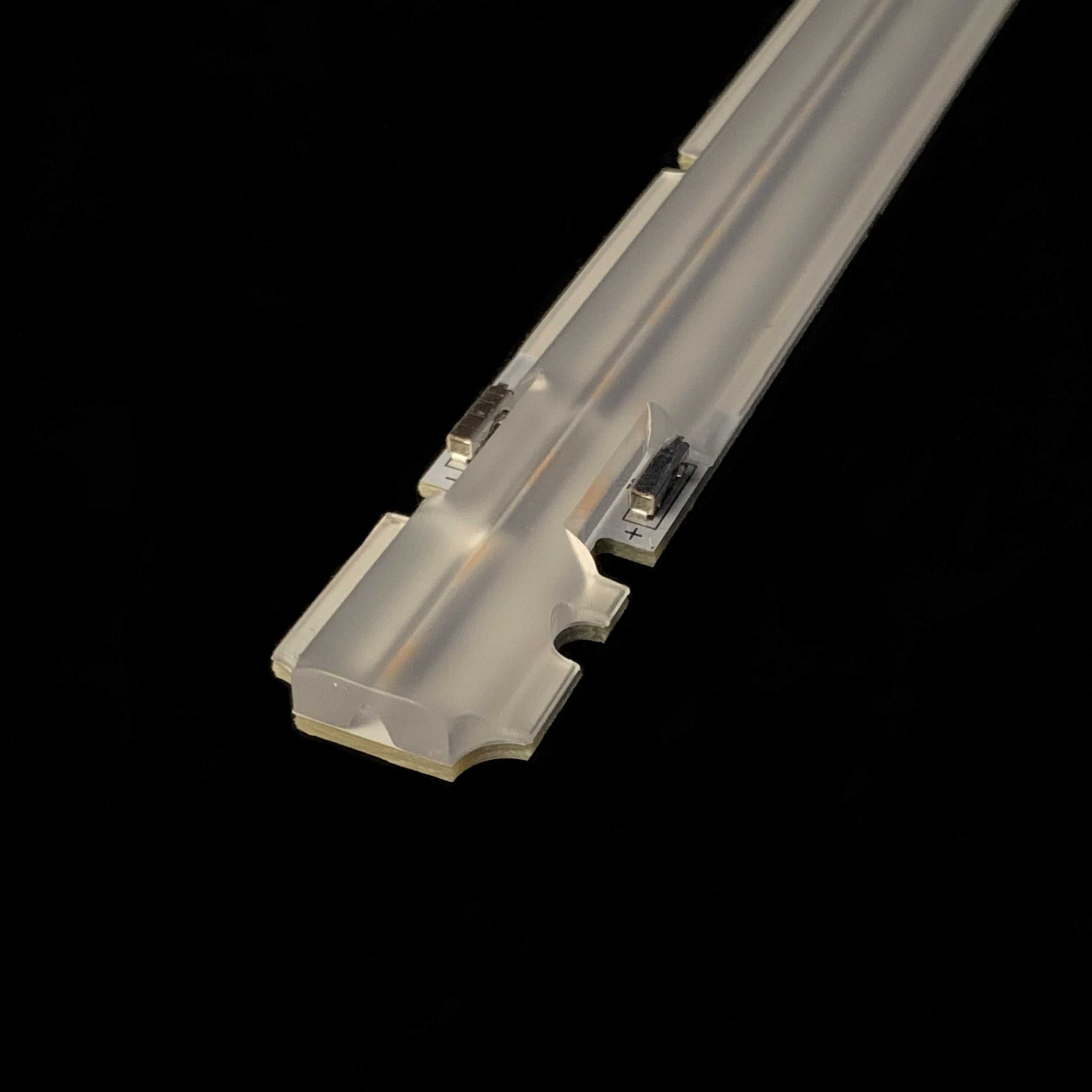

On-Board Cosine® Optic (Batwing)

Finally a solution for high quality indirect illumination that actually works! Designed to match the theoretically ideal cosine curve over a wide angular range. Provides uniform and consistent wide angle light without problematic and unwanted striations or color over angle artifacts.

Fusion Optix technology and precision extrusion processes combine to provide high efficiency, uniform wide angle light distributions. Designed to be placed directly onto Fusion Optix range of SpekLED™ LED boards to provide high efficiency light in a range of choices including 2700K to 4000K CCT, 80, 90 and >90 CRI and Circadian.

Download Cosine® Optics Brochure



Key Features

  • Choice of beam spread from 90 to 150 degrees
  • Choice of mounting options
  • >90% optical efficiency
  • <30K color shift
  • Compliments SpekLED range of LED boards
  • Patents pending



Category: SKU: 3114

Description

90 Deg Batwing
120 Deg Batwing
150 Deg Batwing
Fusion Optix Cosine Optic® for perfect indirect illumination

Cosine™ optical technology and precision extrusion processes combine to provide high efficiency, uniform wide angle light distributions. Designed to be placed directly onto Fusion Optix range of SpekLED™ LED boards to provide high efficiency light in a range of choices including 2700K to 4000K CCT, 80, 90 and >90 CRI and Circadian.

Further Information

  • Designed specifically for indirect linear LED lighting products.
  • Easy to use, fits neatly on SpekLED™ boards.
  • Batwing angles of 90, 120, 135 or 150 degrees (Super Wide) options.
  • Optical efficiencies of up to 93%
  • Available in PMMA, High Temp PMMA, PC, and Silicone (In Development)
  • Enhanced color reliability and lifetime performance via ColorSure™ technology.
  • Booster films increase efficiency by 5-10%. Standard lengths up to 10ft.
  • Also available as continuous run, snap-in or slide-in FlatLENS™.
  • Significant high volume price breaks.
  • Manufacturing based 100% in USA.
  • Full service engineering support available.
