High Reflectance Optics, Extrusions & Materials

Fusion Optix ReflecTEK™ Optics products offer total reflection efficiency of over 97% with controlled diffuse and specular components. The product range is available in polycarbonate and a thermoformable PMMA, as well as a range substrates and metals. It also includes transflective materials that are capable of simultaneously transmitting and reflecting light. The ReflecTEK™ Optics range also includes thermoformed and extruded reflective components and profiles. These provide an easy to mount, snap-in or slide-in solutions.

ReflecTEK™ Overview Download

What is a ReflecTEK™ optic?

Fusion Optix ReflecTEK™ Optics products offer total reflection efficiency of over 97% with controlled diffuse and specular components. The product range is available in polycarbonate and a thermoformable PMMA, as well as a range substrates and metals. It also includes transflective materials that are capable of simultaneously transmitting and reflecting light. The ReflecTEK™ Optics range also includes thermoformed and extruded reflective components and profiles. These provide an easy to mount, snap-in or slide-in solutions.

How efficient are ReflecTEK™ optics?

ReflecTEK™ Optics products are designed to offer the maximum possible efficiencies when used with typical white and RGB LED packages. Our diffuse and specular products offer total reflection efficiency of over 97% in the visible range. In addition we have products that are optimized for UV (UVA, UVB and UVC) and IR wavelengths.

Standard Products

ReflecTEK™ 3D Reflectors

Fusion Optix Thermoformed ReflecTEK™ 3D Optics products offer total reflection efficiency of over 97% with controlled diffuse and specular components in a 3-dimensional form factor. The product range is available in polycarbonate and a thermoformable PMMA, as well as a range substrates and metals. It also includes transflective materials that are capable of simultaneously transmitting and reflecting light. The ReflecTEK™ Optics range also includes thermoformed and extruded reflective components and profiles. These provide an easy to mount, snap-in or slide-in solutions.

MicroTEK™ Reflectors

MicroTEK™ linear profile reflectors  lead the industry in terms of light management properties and material choices. Specifically designed for LED lighting applications these reflectors can be designed to easily slide into existing aluminum extrusions. MicroTEK™ linear profile reflectors increase brightness, uniformity, and overall LED lighting system efficiency by recycling rejected light in the system, giving it a second chance to exit at a useful angle.

Additional support available to help OEMs optimize LED product design. Our industry leading performance is derived from our innovations in molecular and micron-scale volumetric and surface optics combined with high volume manufacturing capabilities.

ReflecTEK™ On-Board Reflectors

A simple solution for LED applications that are seeking to control light distributions on a board-level or provide low glare, recessed lighting. Typical application would be high quality office lighting. Optimized for 3030 packages but is also compatible with other typical sizes such as 2835 or 5630 size mid-power LED packages and is available in range of sizes and formats. Available in white, high reflective white and black.

ReflecTEK™ Metal Reflectors

Fusion Optix reflective metals offer some of the highest diffuser and specular white reflectance levels. Designed to reflect efficiently and uniformly across the visible spectrum, our reflective materials boast greater than 97% overall reflectance. Our reflective materials promote highly efficient light control and extraction, resulting in greatly improved fixture performance. Long lasting and durable, our reflective film can be converted and supplied in a variety of form factors.

fusion-optix-white-reflective-film

ReflecTEK™ White Film

Fusion Optix reflective films and components offer some of the highest diffuser and specular white reflectance levels. Designed to reflect efficiently and uniformly across the visible spectrum, our reflective materials boast greater than 97% overall reflectance. Our reflective materials promote highly efficient light control and extraction, resulting in greatly improved fixture performance. Long lasting and durable, our reflective film can be converted and supplied in a variety of form factors.

Features & Benefits

  • MicroTEK™ technology inside.
  • Developed specifically for LED lighting applications.
  • High efficiency, > 97% reflectance (SCI).
  • Controlled diffuse and specular reflection ratios.
  • Excellent color rendition (ColorSure™).
  • Material options available for thermoforming and flexible.

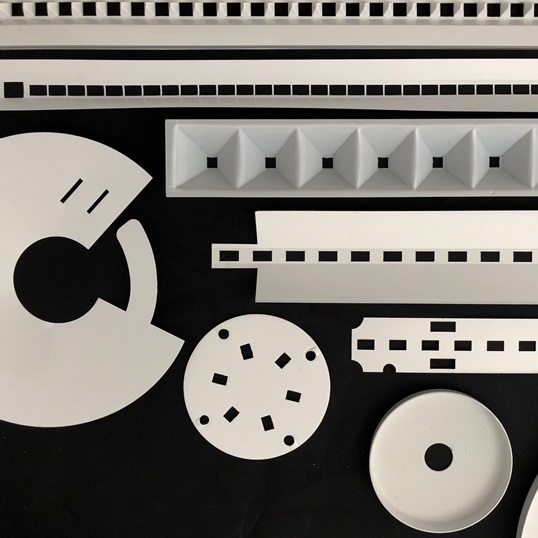

  • Material easy to die-cut or laser cut.
  • Can be supplied with pressure sensitive adhesive backing.
  • PET, PMMA or Aluminium.
  • Design support available.

ReflecTEK™ Transflective Films

Fusion Optix Transflective films create an infinite number of new design possibilities for all types of fixtures. Our Transflective films feature extremely low light absorption while simultaneously transmitting and reflecting light. The transmission and reflection percentages are completely customizable and the films are available in a variety of form factors.

Reflector Profile

ReflecTEK™ linear profile reflectors lead the industry in terms of light management properties and material choices. Specifically designed for LED lighting applications these reflectors can be designed to easily slide into existing aluminum extrusions. ReflecTEK™ linear profile reflectors increase brightness, uniformity, and overall LED lighting system efficiency by recycling rejected light in the system, giving it a second chance to exit at a useful angle.

Additional support available to help OEMs optimize LED product design. Our industry leading performance is derived from our innovations in molecular and micron-scale volumetric and surface optics combined with high volume manufacturing capabilities.
